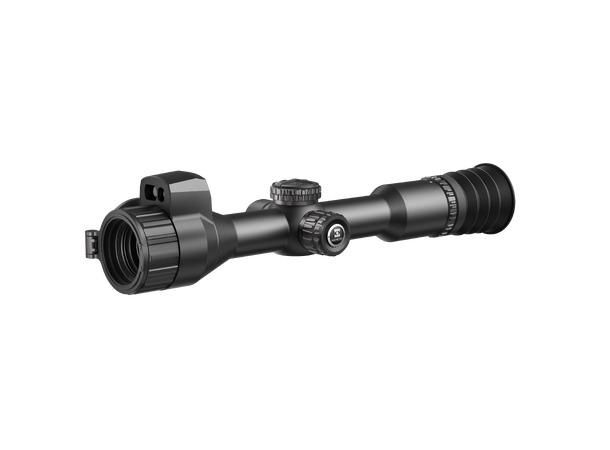

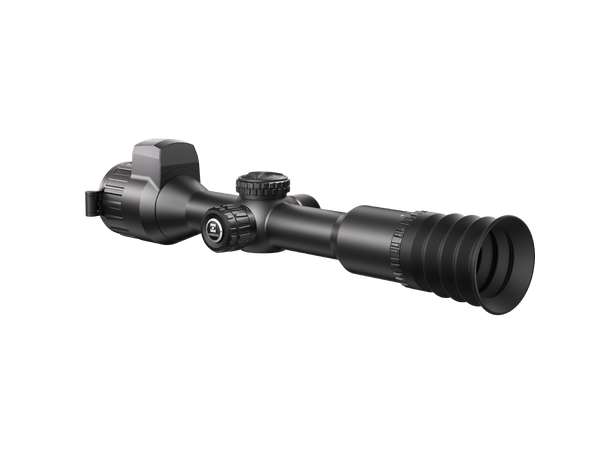

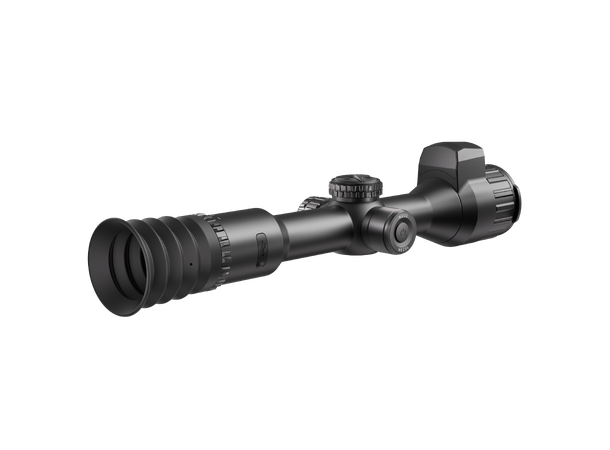

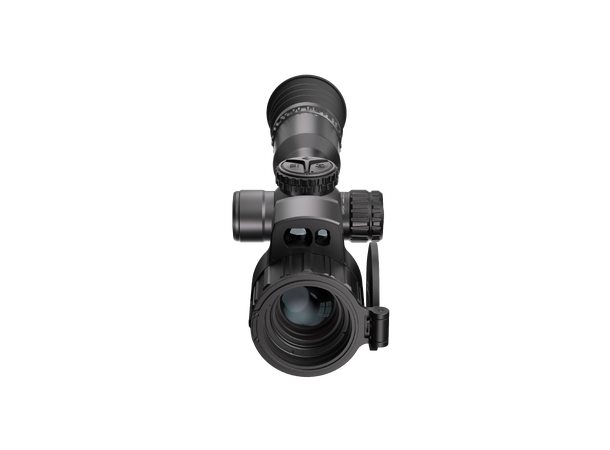

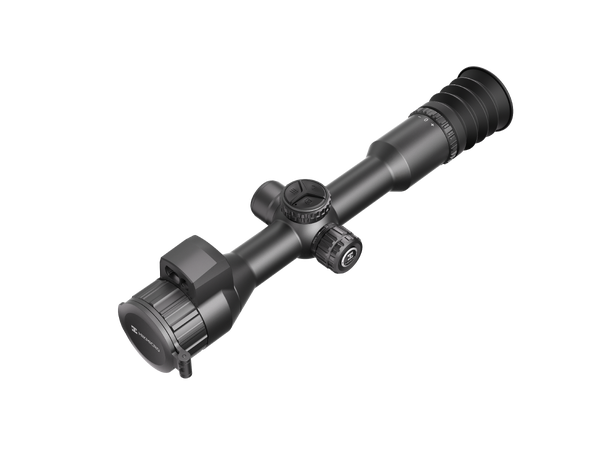

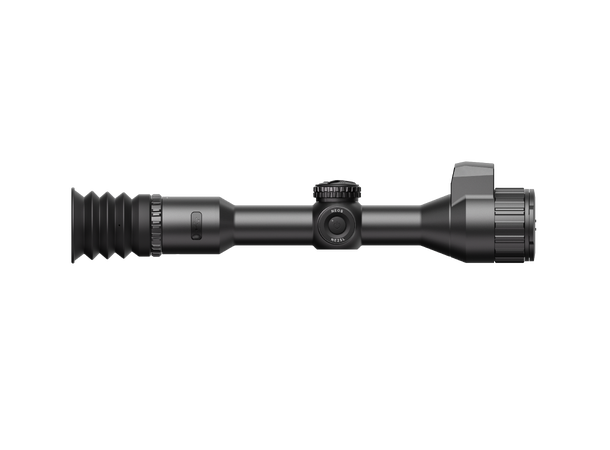

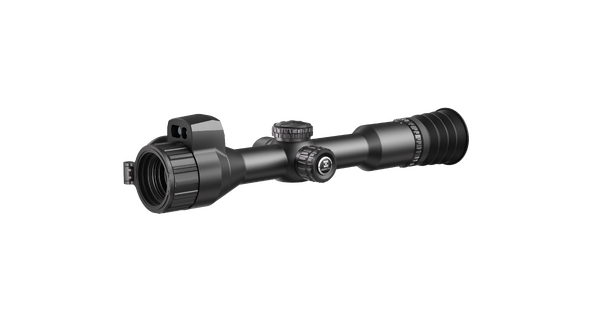

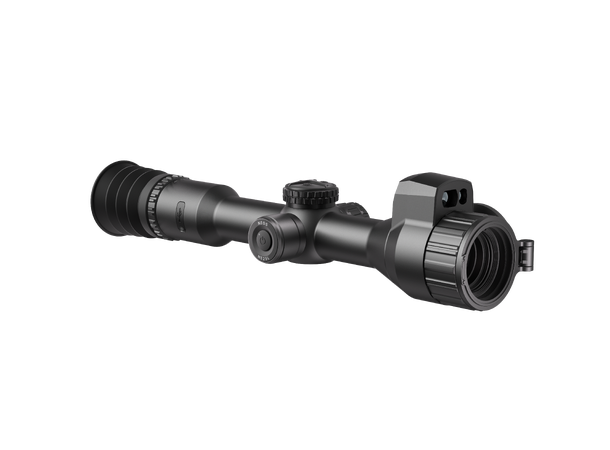

Hikmicro NEOS - kikkertsikte
NEOS er et lett og kompakt termisk kikkertsikte som kombinerer moderne teknologi med høy kostnadseffektivitet – et praktisk valg for jegere som ønsker solid ytelse i et mer smidig format.
|
Thermal Module
|
NEOS NE25
|
NEOS NH25L |
NEOS NH35L |
|
Thermal Resolution
|
256x192, 12 µm
|
320x240, 12 µm |
384 x 288, 12 µm |
|
Frame Rate
|
50 Hz
|
|
Response Waveband
|
8 µm to 14 µm
|
|
NETD
|
Less than 18 mK (@25°C), F# = 1.0
|
|
Lens (Focal Length)
|
25 mm, F1.0
|
35 mm, F1.0 |
|
Detection Range
|
1200 meter
|
1800 meter |
|
Magnification
|
3,5x - 24,5x
|
|
|
Field of View (HxV)
|
7,0° x 5,3° / 12,2m x 9,3m
|
7,6° x 5,7° / 13,1m x 10,0m |
|
Image Display
|
|
Display
|
0,49 inch AMOLED
|
|
Palettes
|
White Hot, Black Hot, Red Hot, Fusion,
Red Monochrome, Green Monochrome
|
|
Exit Pupil
|
8 mm
|
|
Eye Relief
|
55 mm
|
|
Brightness Adjustment
|
Yes
|
|
Tone Adjustment
|
Cold, Warm
|
| Contrast Adjustment |
Yes |
|
Zoom Pro
|
Yes
|
|
Image Pro 3.0
|
Yes
|
|
HSIS (Hikmicro Shutterless Image System)
|
Yes
|
|
System
|
|
Record Video
|
On-board video recording
|
|
Capture Snapshot
|
Yes
|
|
Audio Recording
|
Yes
|
|
Recoil-activation Recording
|
Yes
|
|
Standby Mode
|
Yes
|
|
Storage
|
Built-in, 64 GB
|
|
PIP
|
Yes
|
|
Hotspot
|
Yes
|
|
Zeroing Profiles
|
5
|
|
Max Recoil
|
1000 g / 0,4 ms
|
|
Freeze Zeroing
|
Yes
|
|
Local Album
|
Yes
|
| Ballistic Calculation |
|
Yes |
| Click Value |
|
1 click = 1 cm @ 100 m |
| Distance Measurement |
|
Yes |
| General |
|
Battery Type
|
One Rechargeable Lithium Battery (internal), one replaceable and rechargeable 18650 battery
|
|
Battery Operating Time
|
9,5 hours
|
9 hours |
8 hours |
|
IP
|
IP67
|
|
Mounting
|
Standard 30 mm
|
|
Dimension
|
354,6x86,1x56,1 mm
|
354,6x86,1x75,8 mm |
|
Weight
|
540 g
|
550 g |
570 g |
|
Working Temperature
|
-30 C to 55 C
|
|
Center Height
|
32 mm
|
| Laser Range Finder |
| Safety Class |
|
Class 1 |
| Wave Length |
|
905 nm |
| Measuring Range |
|
Min 10 m, max 1000 m, +/- 1 m |
