Thermal Module
|

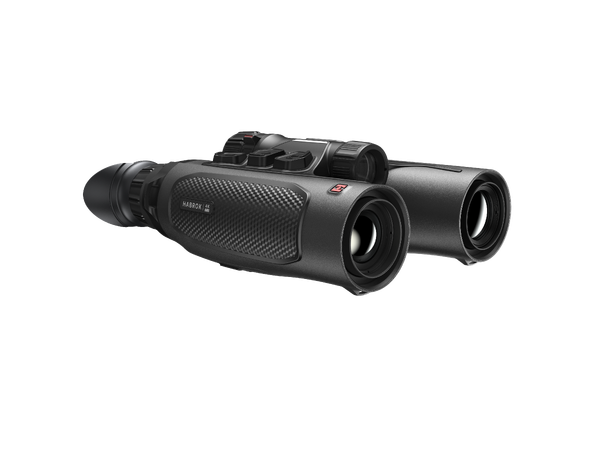

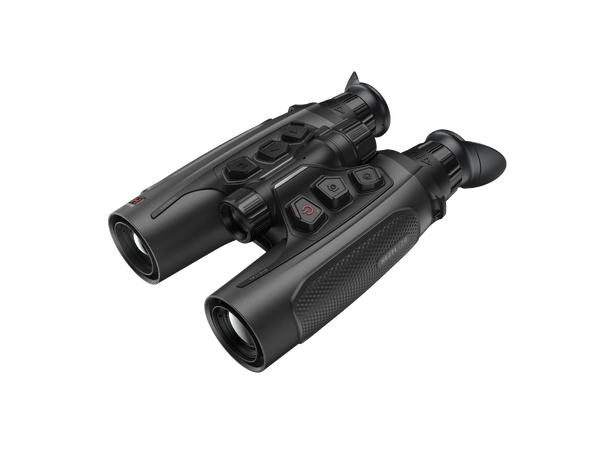

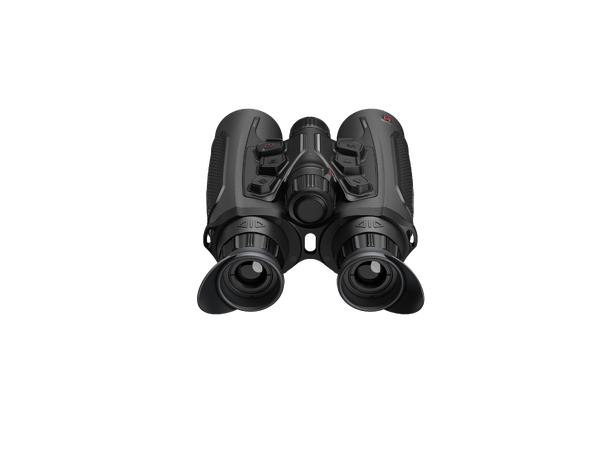

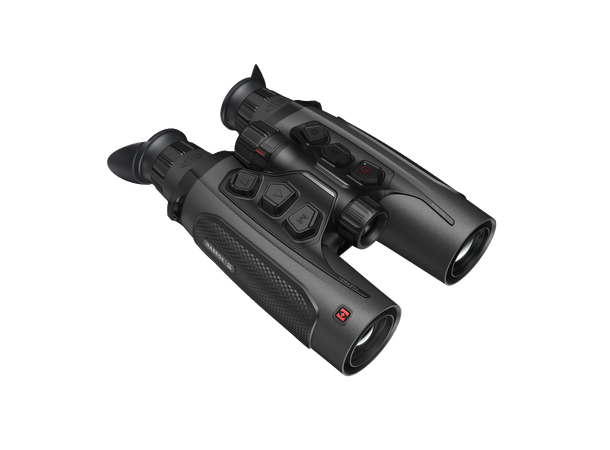

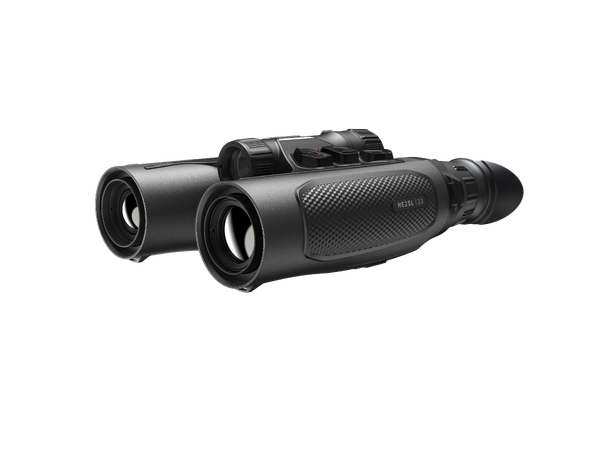

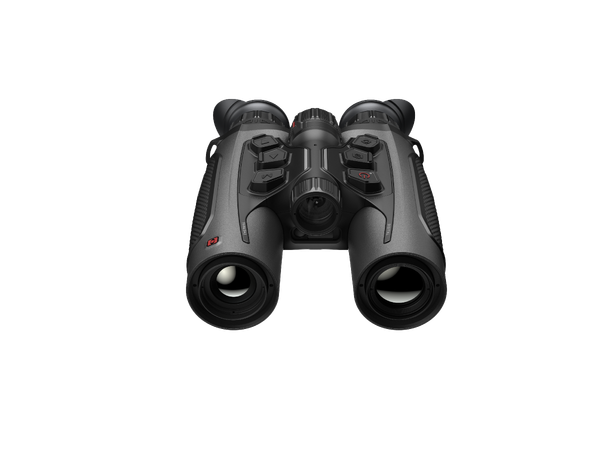

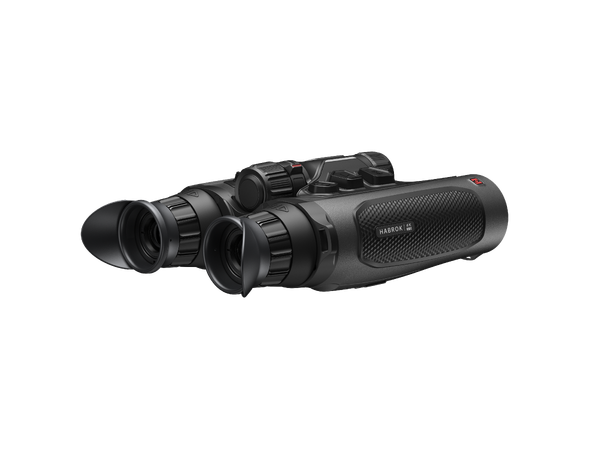

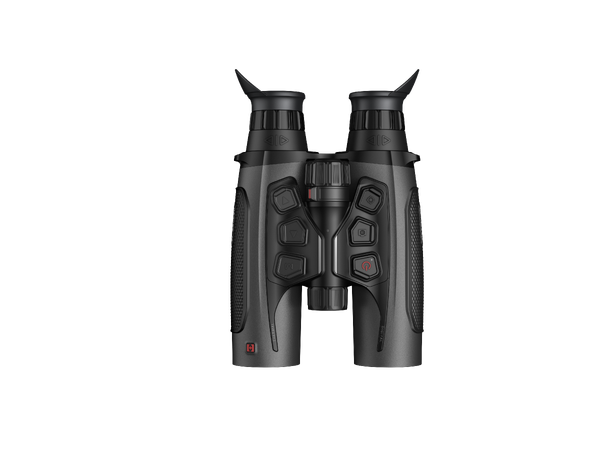

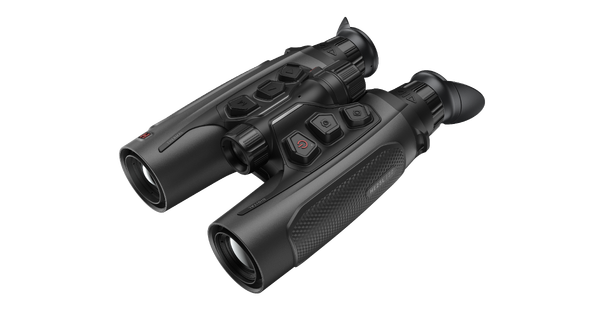

Habrok
HE25L 4K 2.0
|
|
Thermal Sensor
|
256 x
192, 12 µm
|
|
NETD
|
Less
than 20mK
|
|
Objective Lens
|
25 mm /
F1.0
|
|
Field of View
|
7.0°x5.3° / 12,2 m × 9,3 m
|
|
Detection Range
|
1200 m
|
|
Optical
Module
|
|
|
Resolution
|
3840x2160
|
|
Objective Lens
|
60 mm /
F2.2
|
|
|
|
|
IR Illuminator Wavelenght
|
940 nm (default) / 850 nm (replaceable)
|
|
Field of View
|
7,3°x4.1°
/ 12,8 m × 7,2 m
|
|
Smart IR
|
Yes
|
|
Viewing Range at Nigth
|
400 m
(estimated)
|
|
Laser Rangefinder
|
1000 m
measuring distance
|
|
Display
|
|
|
Display
|
0.49
inch, OLED, 1920x1080
|
|
Magnification
|
Thermal: 4.0 x, Optical: 5,5 -
22,0 x
|
|
Image mode
|
Thermal:
Black Hot, White Hot, Red Hot, Fusion
|
|
Optical:
Day, Night, Auto
|
|
Image Pro
|
Yes
|
|
Record Video
|
Yes
|
|
Audio Recording
|
Yes
|
|
Storage
|
64 GB
Built-in
|
|
GPS
|
Yes
|
|
Digital Magnetic Compass
|
Yes
|
|
Power
Supply
|
|
|
Battery Type
|
Replaceable
and Rechargeable Li-ion Battery
|
|
Battery Operation Time
|
6,5 h
(Estimated)
|
|
General
|
|
|
Protection Level
|
IP67
|
|
Work Temperature
|
-30 - 55 grader
|
|
Dimension
|
143,1 mm x
74,8 mm x 223,3 mm
|
|
Weight (w/o batteries)
|
895gram
without batteries
|
