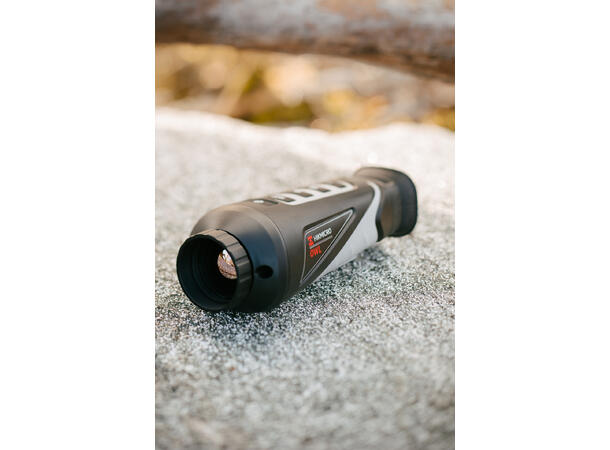

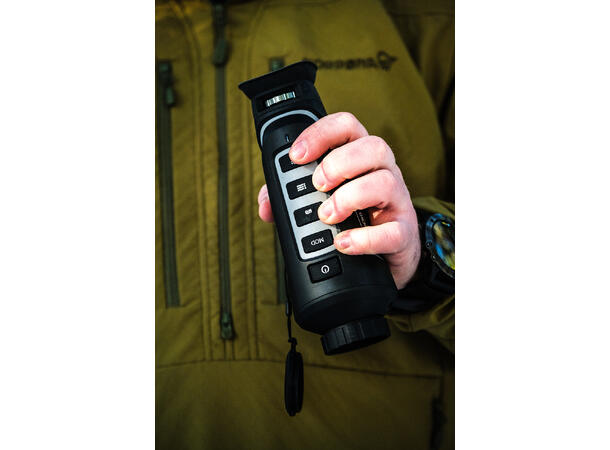

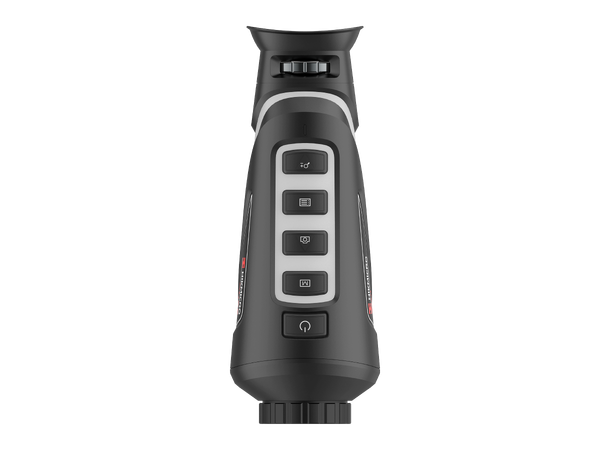

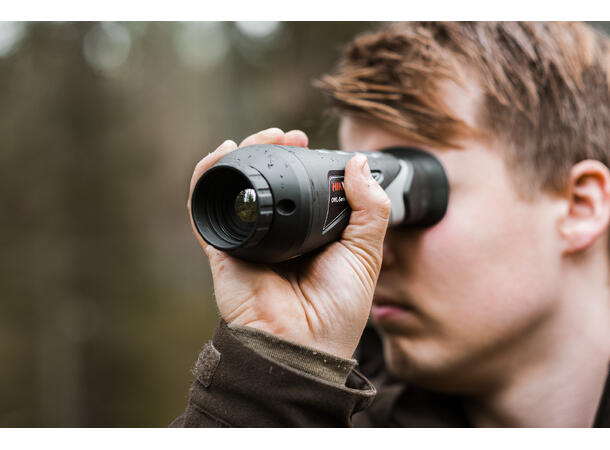

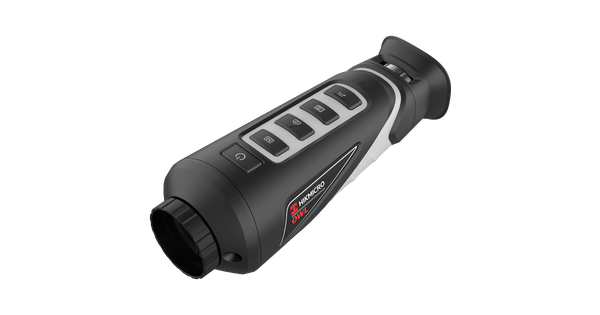

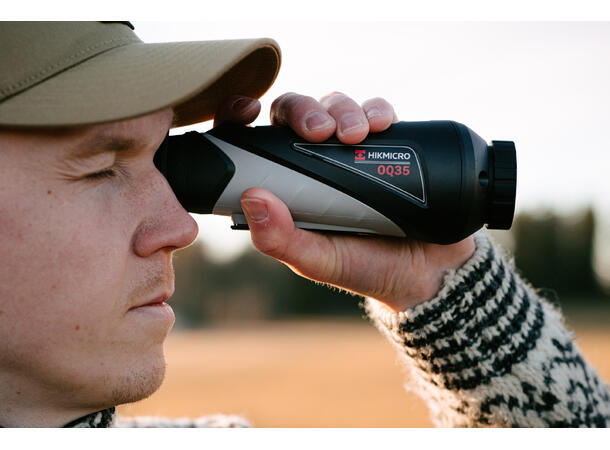

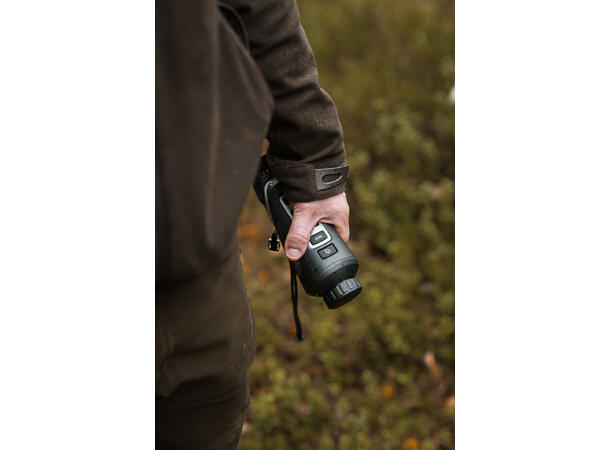

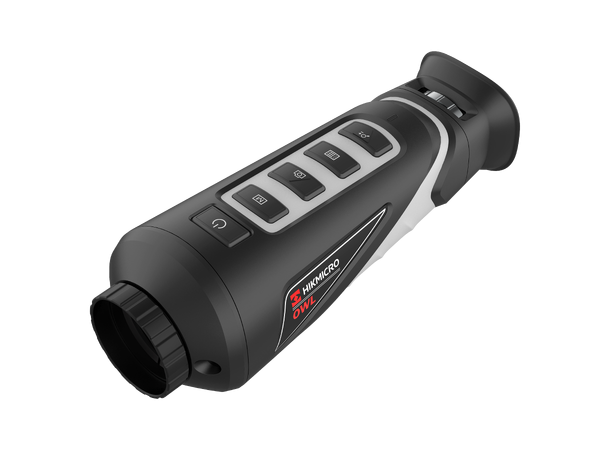

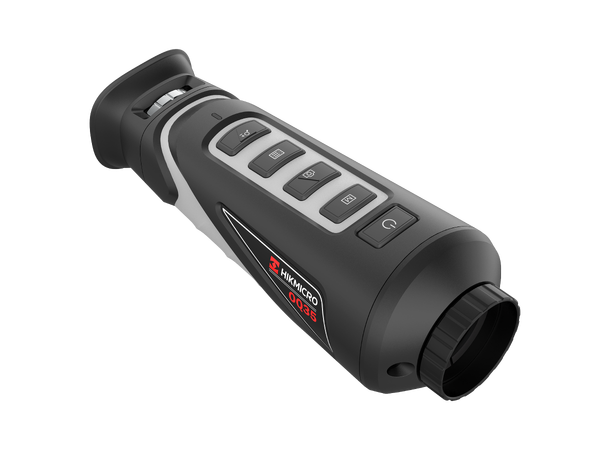

Hikvision Monokular Owl OQ 35mm handheld
observational thermal monocular is equipped with a 640 × 512 infrared detector
and a 1024 × 768 OLED display. It supports functions of observation, highest
temperature target tracking, distance measurement, Wi-Fi hot spot, and so on.
The high-sensitivity built-in thermal detector provides you with clear view
even in total darkness. The monocular is mainly applied to scenarios such as
patrolling, law enforcement, searching and rescuing, drug enforcement,
anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
Key
Features
? 640 × 512 resolution, high sensitivity detector
? Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk
(@25°C), F#=1.0
? 1024 × 768 resolution 0.39-inch OLED display
? Built-in rechargeable Lithium battery
? Up to 5.5 hours continuous running (with Wi-Fi
hot spot function off)
? Wi-Fi hot spot
? Type-C Interface
Tekniske spesifikasjoner Hikmicro OWL:
|
Thermal
Module
|
OWL OH25
|
OWL OH35
|
OWL OQ35
|
|
Thermal
Resolution
|
384 x 288, 17 µm
|
640 x 512, 17 µm
|
|
Frame
Rate
|
50Hz
|
|
NETD
|
Less than 35
mK (@25°C),F#=1.0
|
|
Lens
(Focal Length)
|
25 mm
|
35 mm
|
35 mm
|
|
Field
of View
|
14.88° × 11.19°
|
10.66° × 8°
|
17.7° × 14.2°
|
|
Aperture
|
F 1.0
|
F 1.0
|
F 1.0
|
|
Image Display
|
|
Monitor
|
0.39 inch, OLED, 1024 × 768
|
|
Palettes
|
White Hot,
Black Hot, Red Hot, Fusion
|
|
Digital
Zoom
|
1x, 2x, 4x, 8x
|
|
Detection
Range
|
882 meter
|
1235 meter
|
1800meter
|
|
Highest
Temperature Spot Tracking
|
Yes
|
|
System
|
|
Storage
|
Built-in
memory module (16 GB)
|
|
Record
Video
|
Yes
|
|
Capture
Snapshot
|
Yes
|
|
Wi-Fi
|
Yes
|
|
Standby
Mode
|
Yes
|
|
Hot
Track
|
Yes
|
|
Power Supply
|
|
Battery
Type
|
Rechargeable Lithium Battery
|
|
Battery
Operating Time
|
7 hours with
Wi-Fi off (@25 °C)
5.5 hours with Wi-Fi on (@25 °C)
|
5,5 hours
with Wi-Fi off (@25 °C)
4,5 hours with Wi-Fi on (@25 °C)
|
|
Battery
Capacity Display
|
Yes
|
|
General
|
|
Port
|
Type-C interface
|
|
Inbox
Accessories
|
USB Cable,
Protective bag, Wrist strap, Non-dust cloth and Quick Start guide
|
|
Protection
Level
|
IP67
|
|
Work
Temperature
|
-30 ~ 55?
|
|
Dimension
|
189 mm × 73.7 mm × 66 mm
|
201.6 mm × 73.7 mm × 66 mm
|
|
Weight
|
460 g
|
500 g
|
500 g
|
HIKMICRO (hikmicrotech.com)
Her finner du norsk bruksanvisning til Hikmicro Owl
